COUNTERSLOPE (1/2)

ARCH 100A

rhino 8 ● physical model

2024

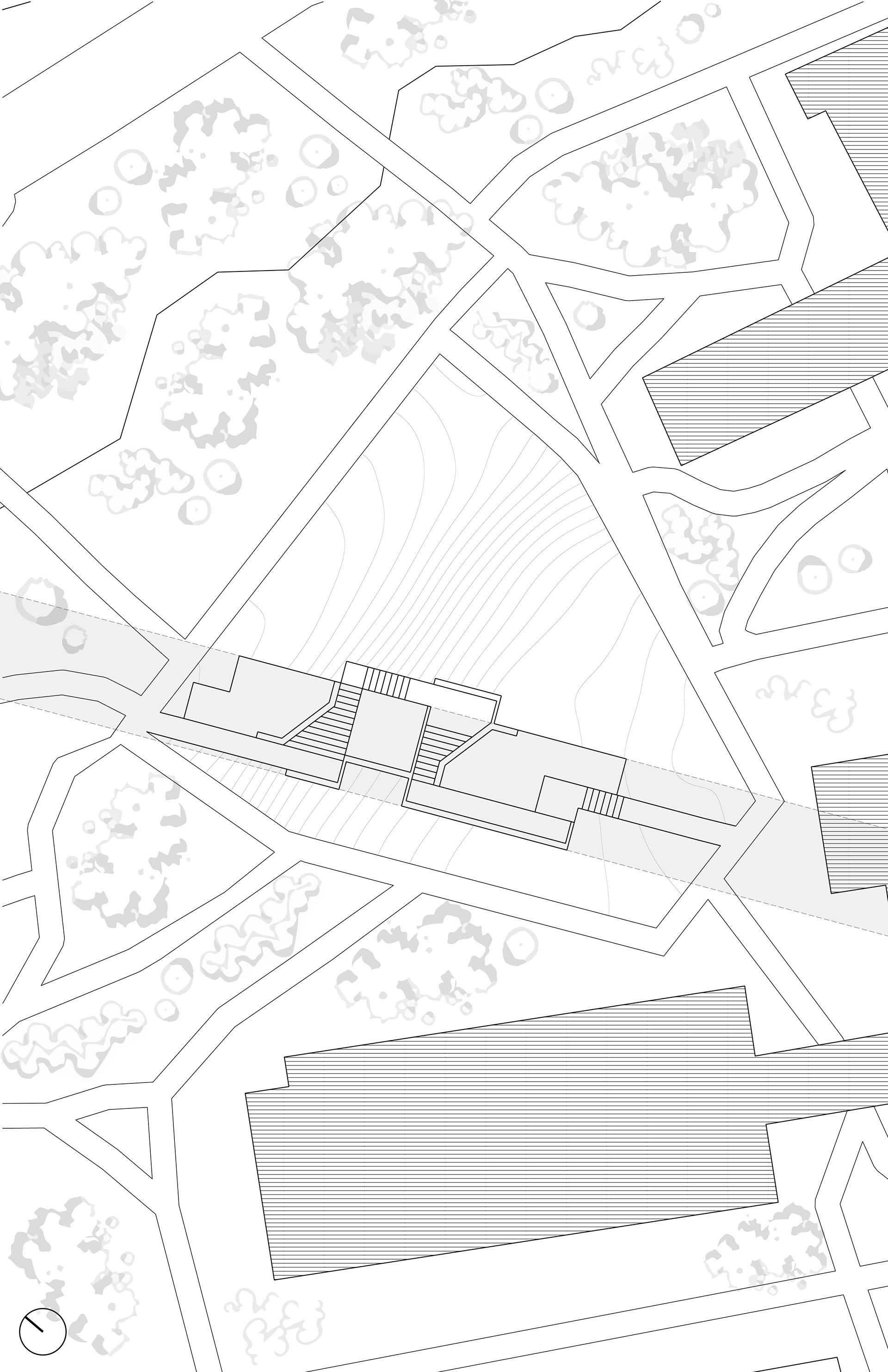

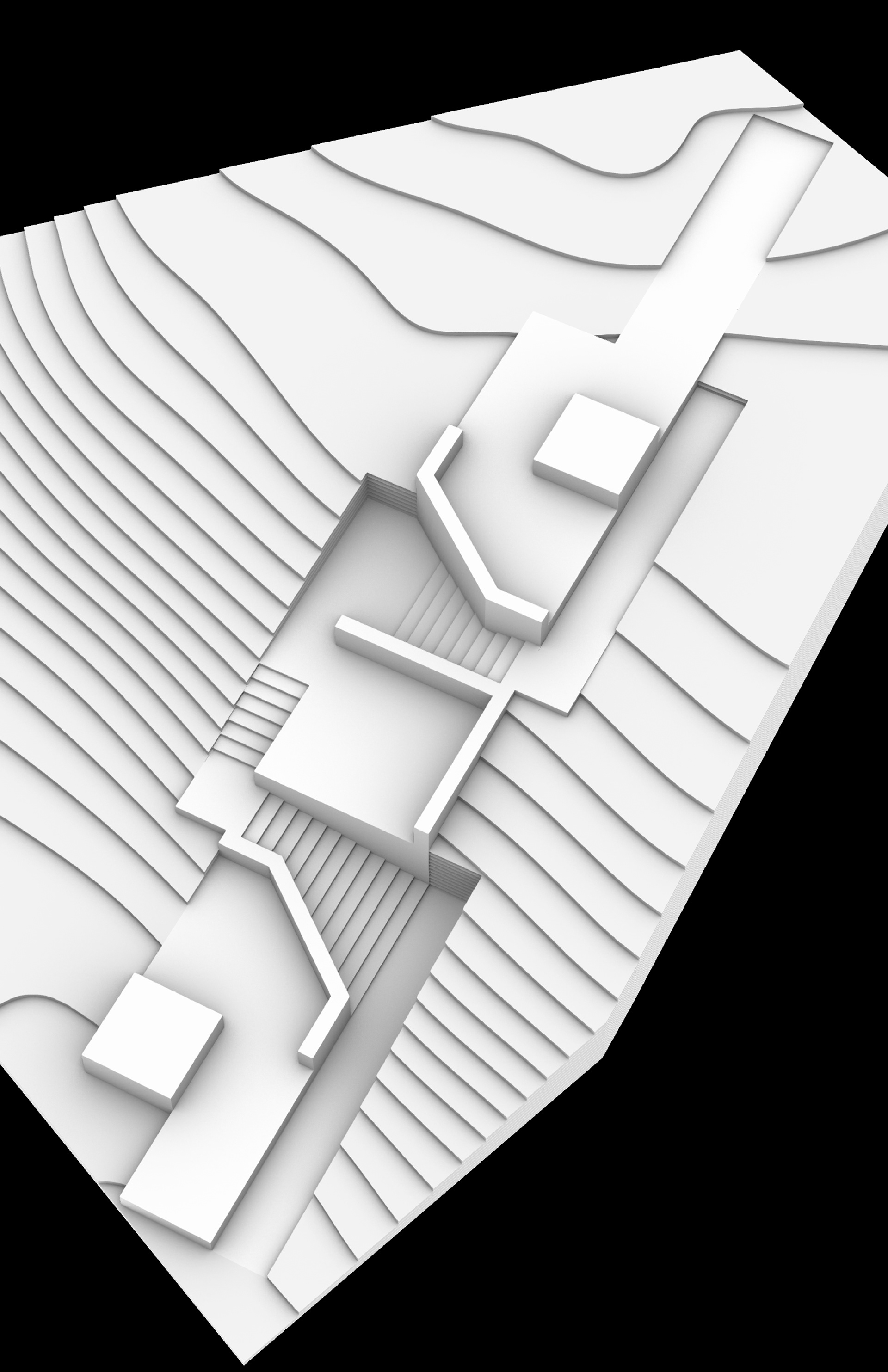

" BASE PLATFORMS; FINAL PROJECT .. THIS STRATEGY DIVIDES A STEEP TOPOGRAPHIC SLOPE (FACULTY GLADE ON uc BERKELEY CAMPUS) INTO THREE MANAGABLE BUILDING PLATFORMS AND AN INTEGRATED, DESCRETE PUBLIC STAIR SYSTEM LEADING FROM THE BOTTOM TO THE TOP OF THE SITE. THE PROJECT'S FOOTPRINT DOES NOT DEVIATE FROM THIS RIGID INTERVENTION, RETAINING A MAJORITY OF THE GLADE'S CHARM. "

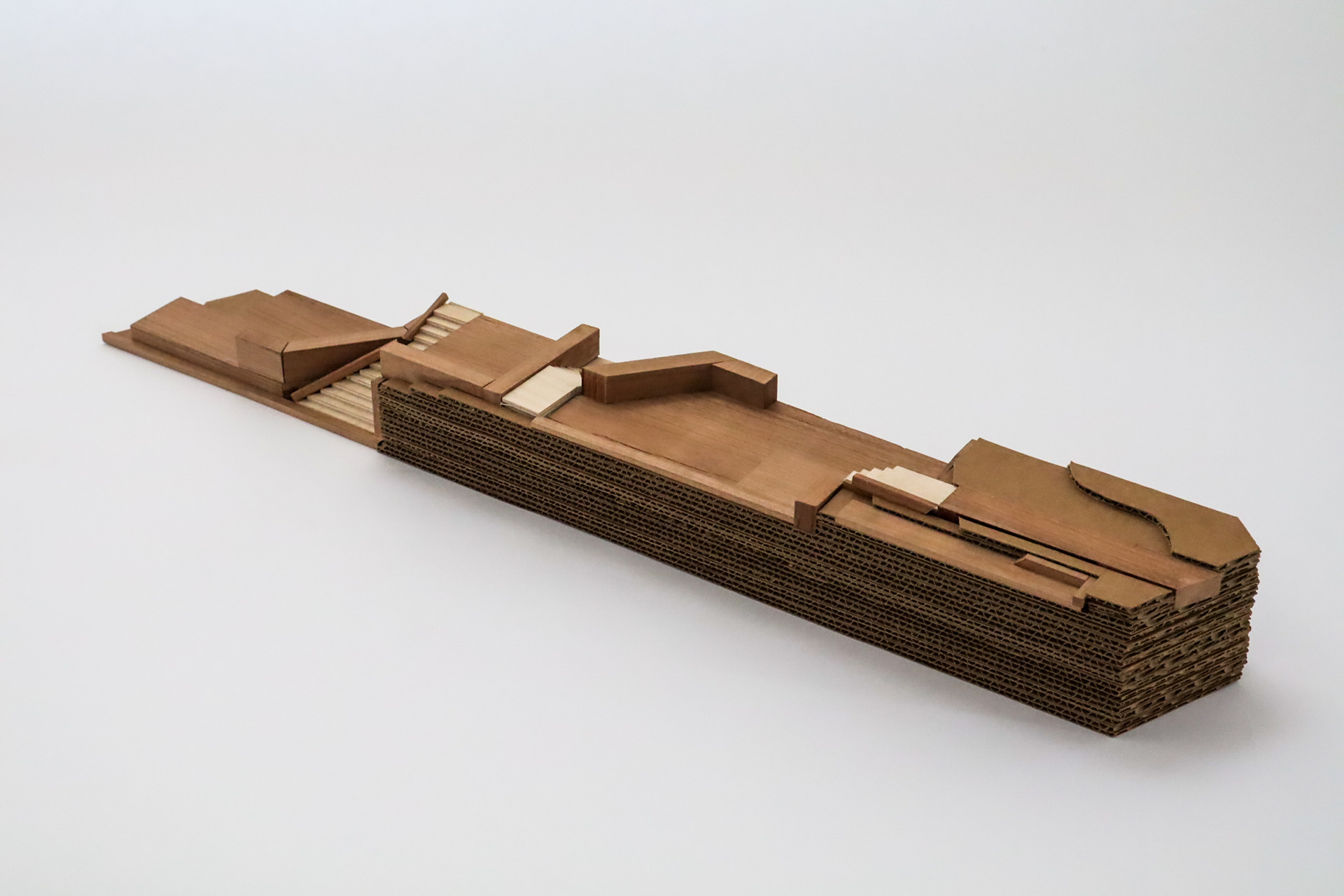

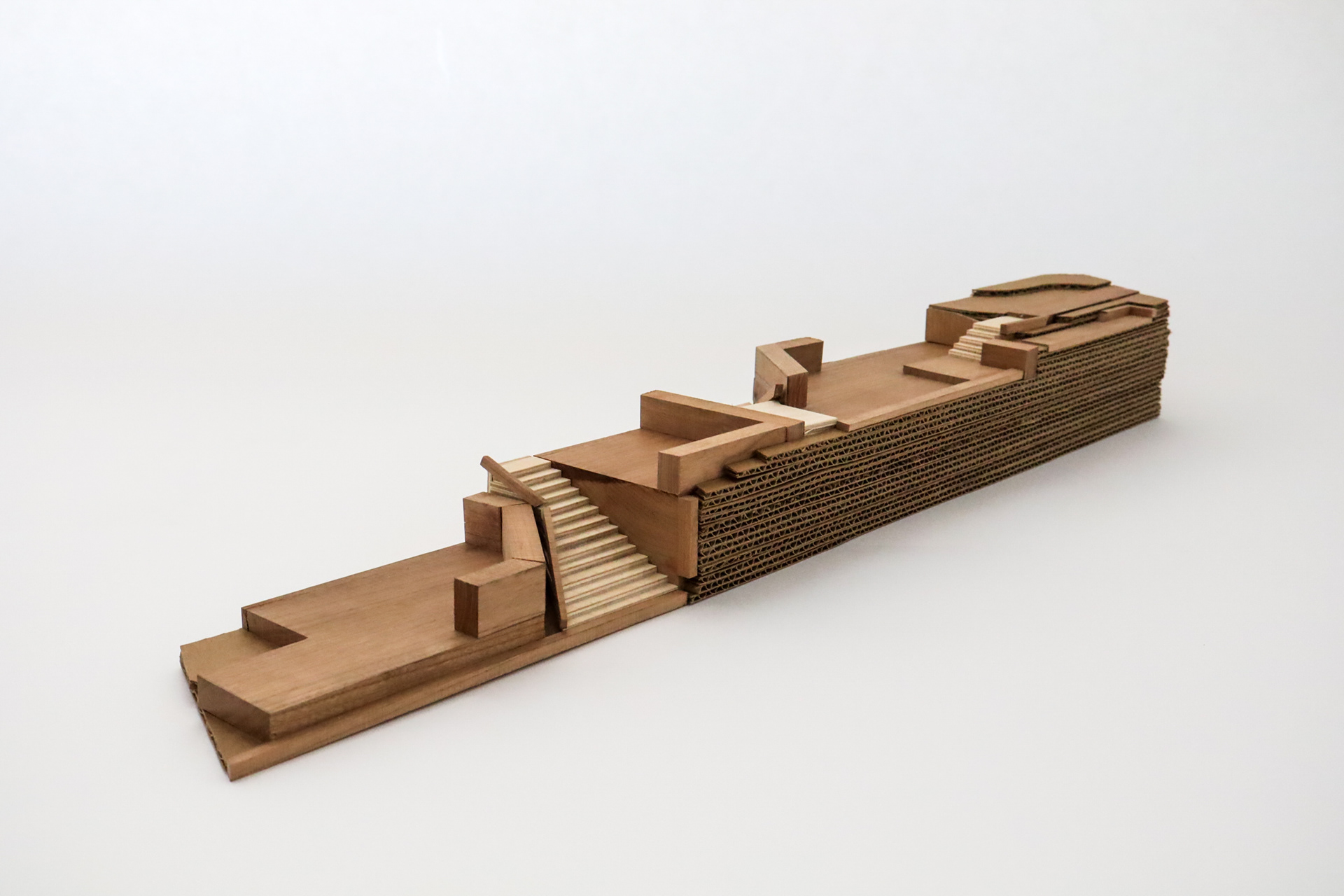

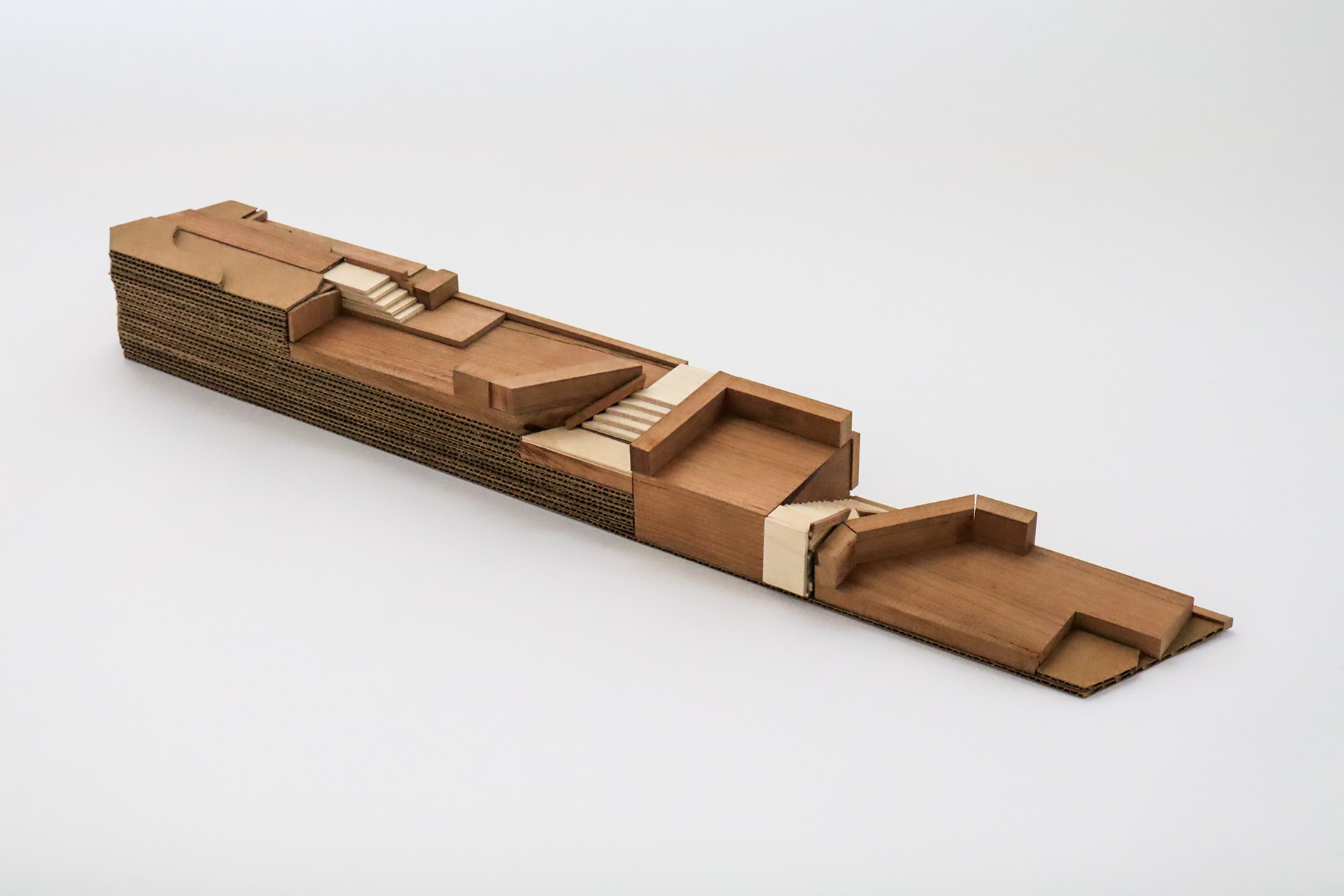

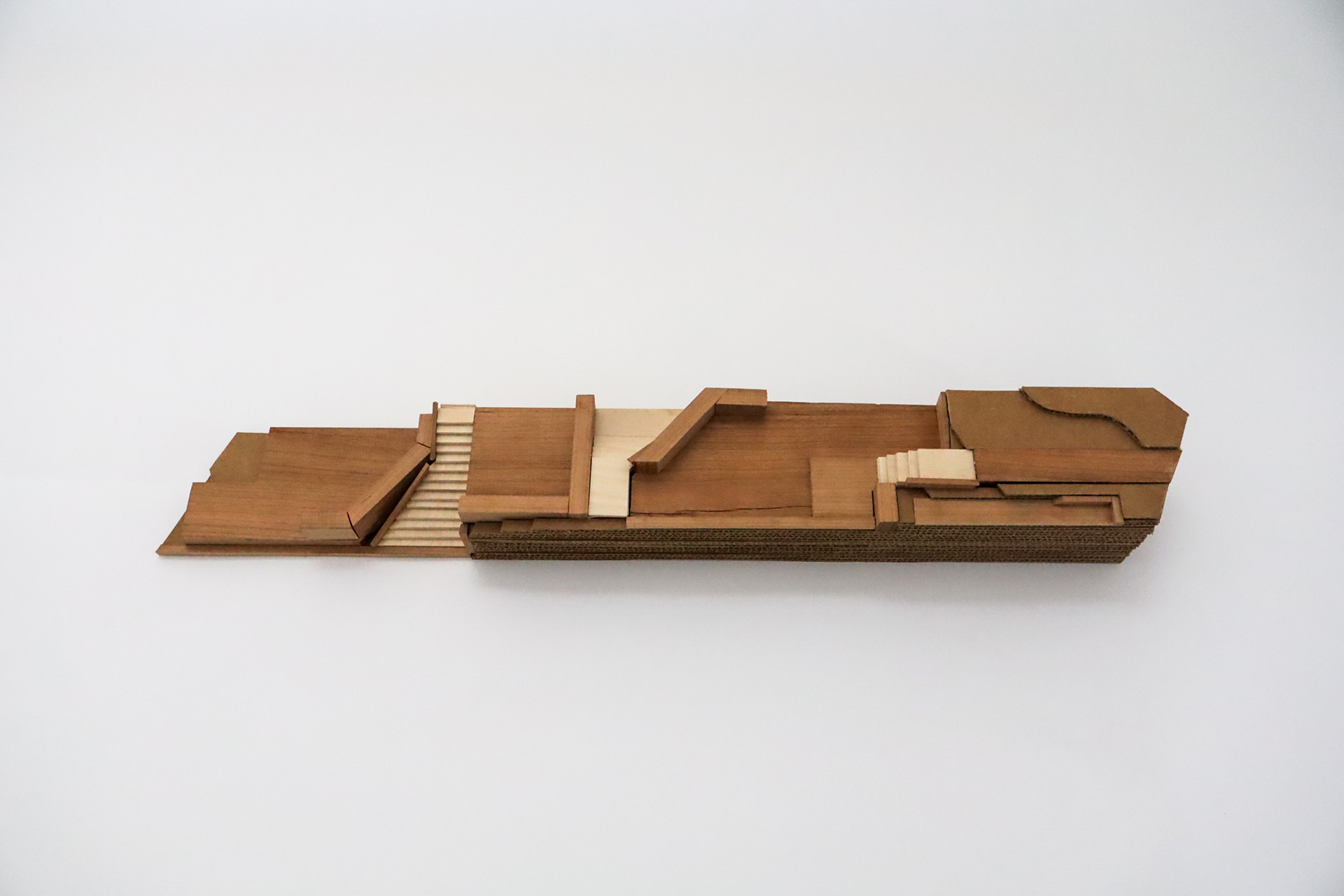

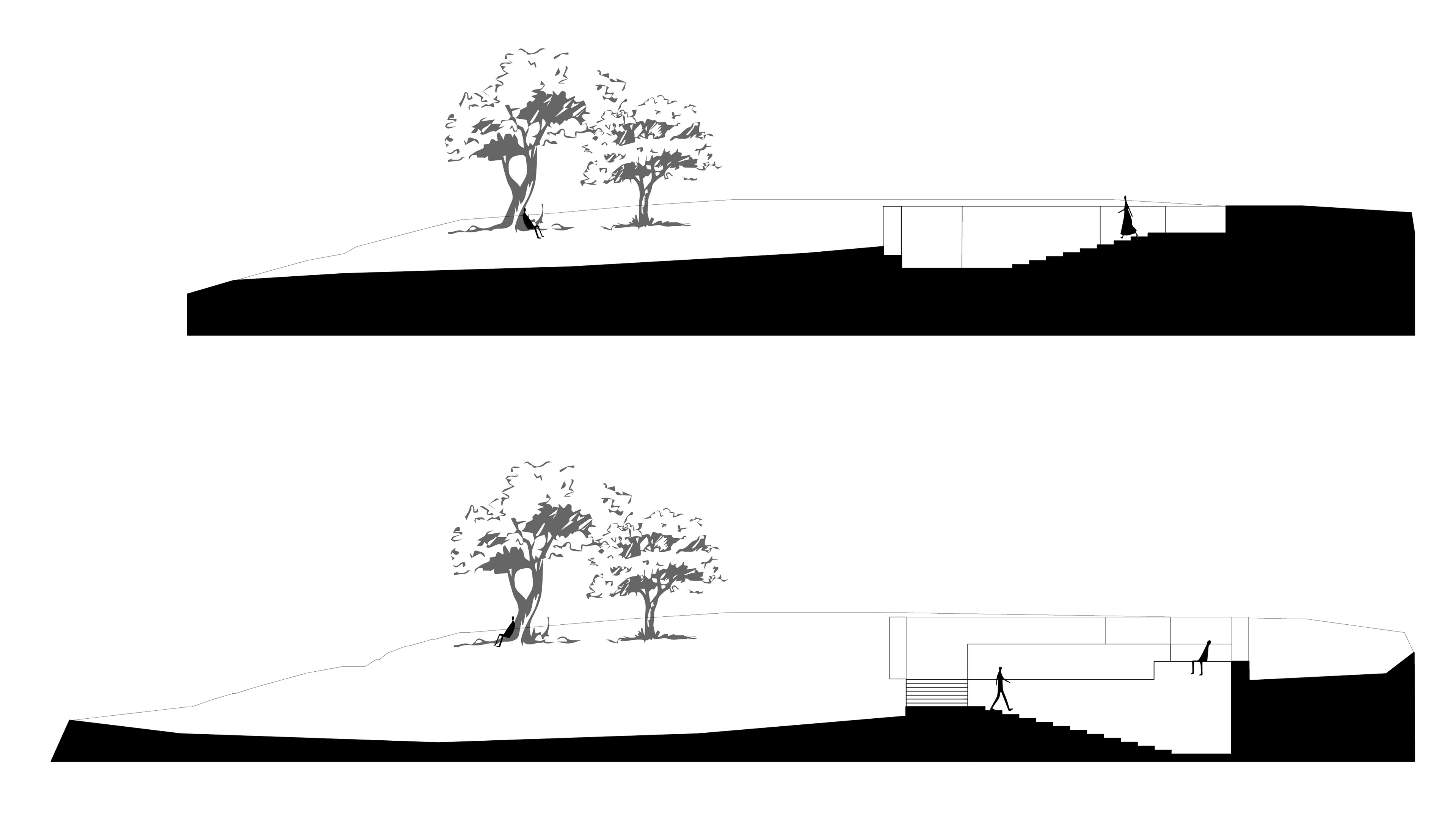

SECTION MODEL OF PLATFORM AND STAIR SYSTEM @ 1/8" = 1'

walnut, plywood, cardboard

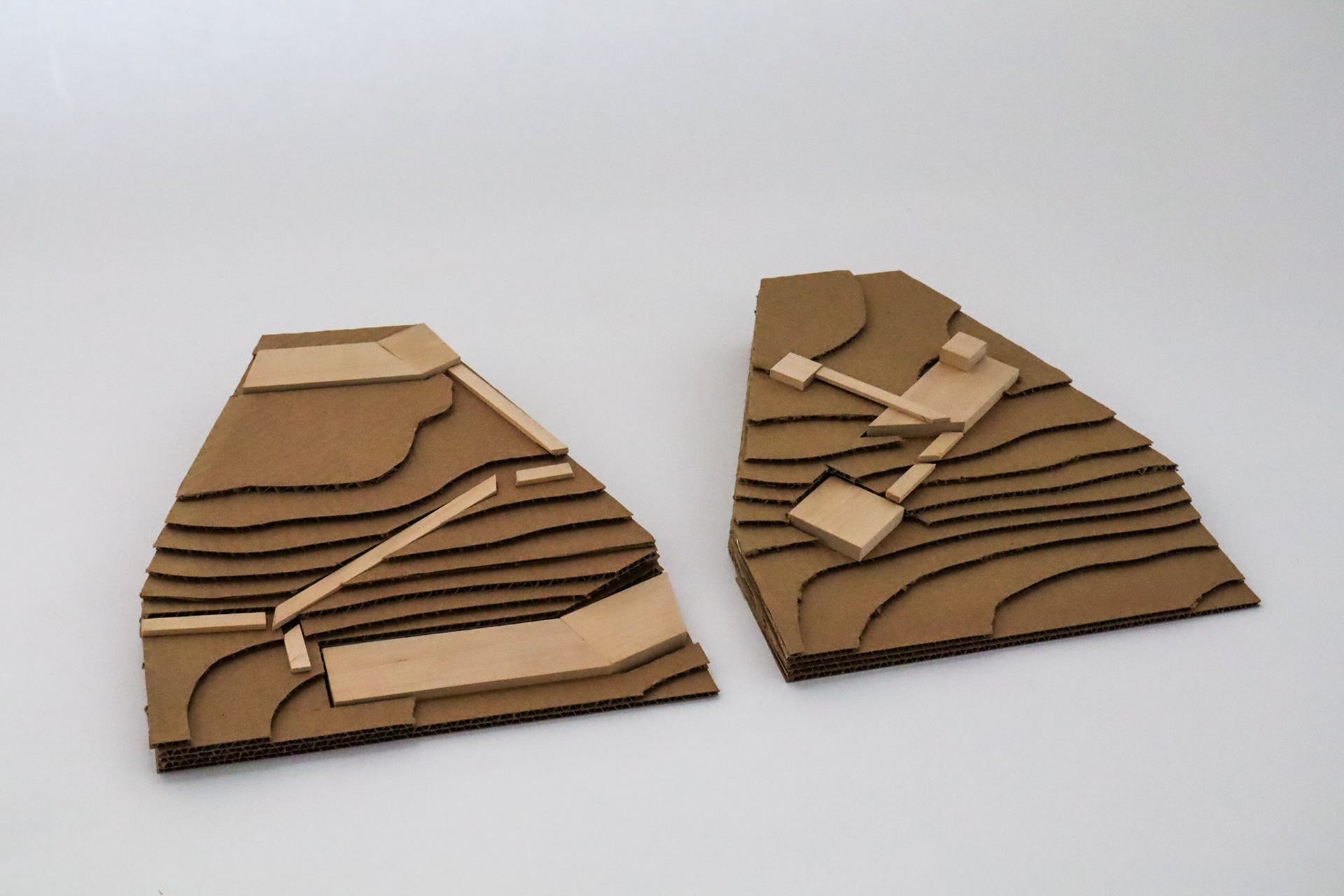

original site intervention concept models @ 1/16" = 1'

basswood, cardboard

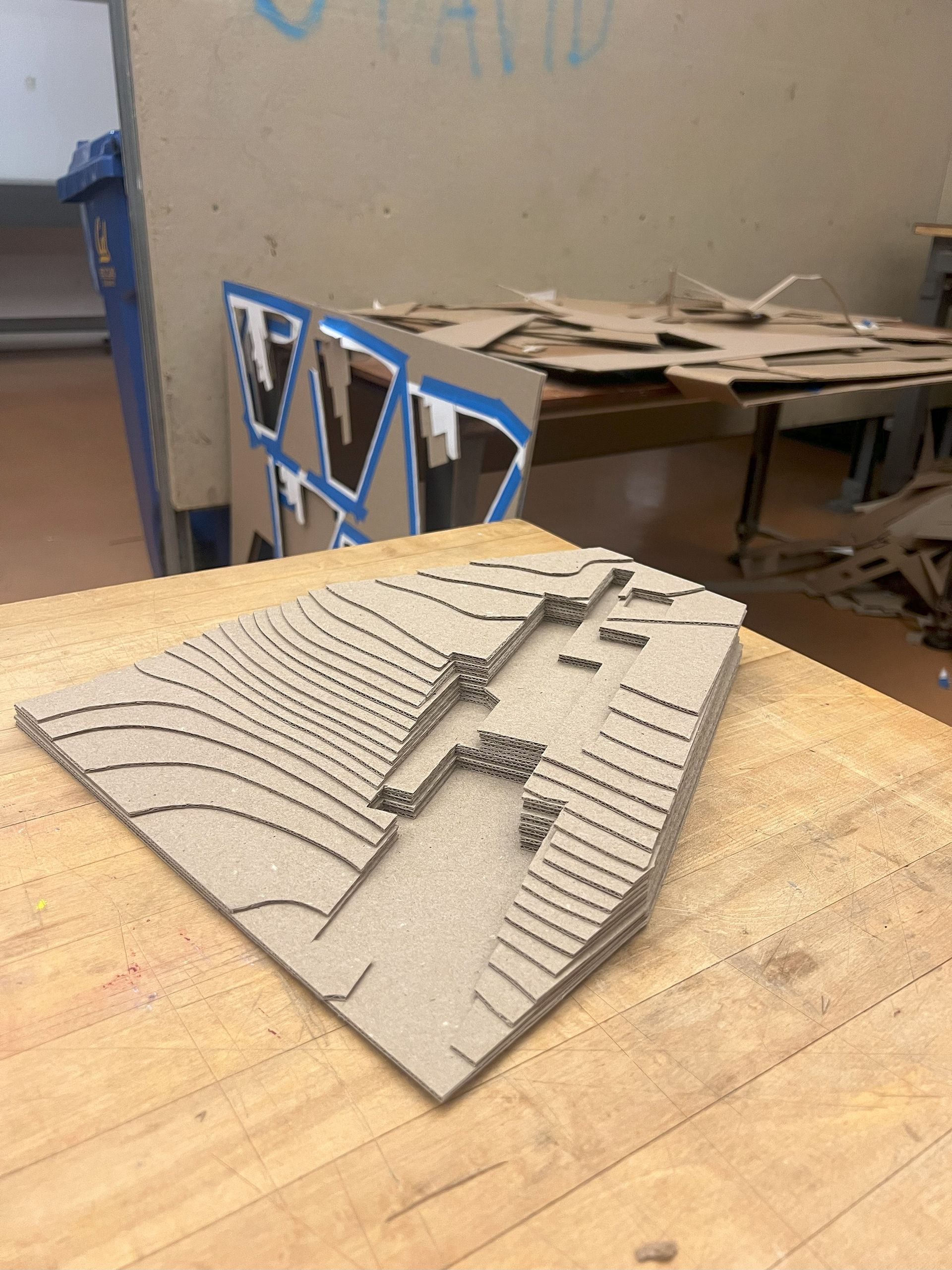

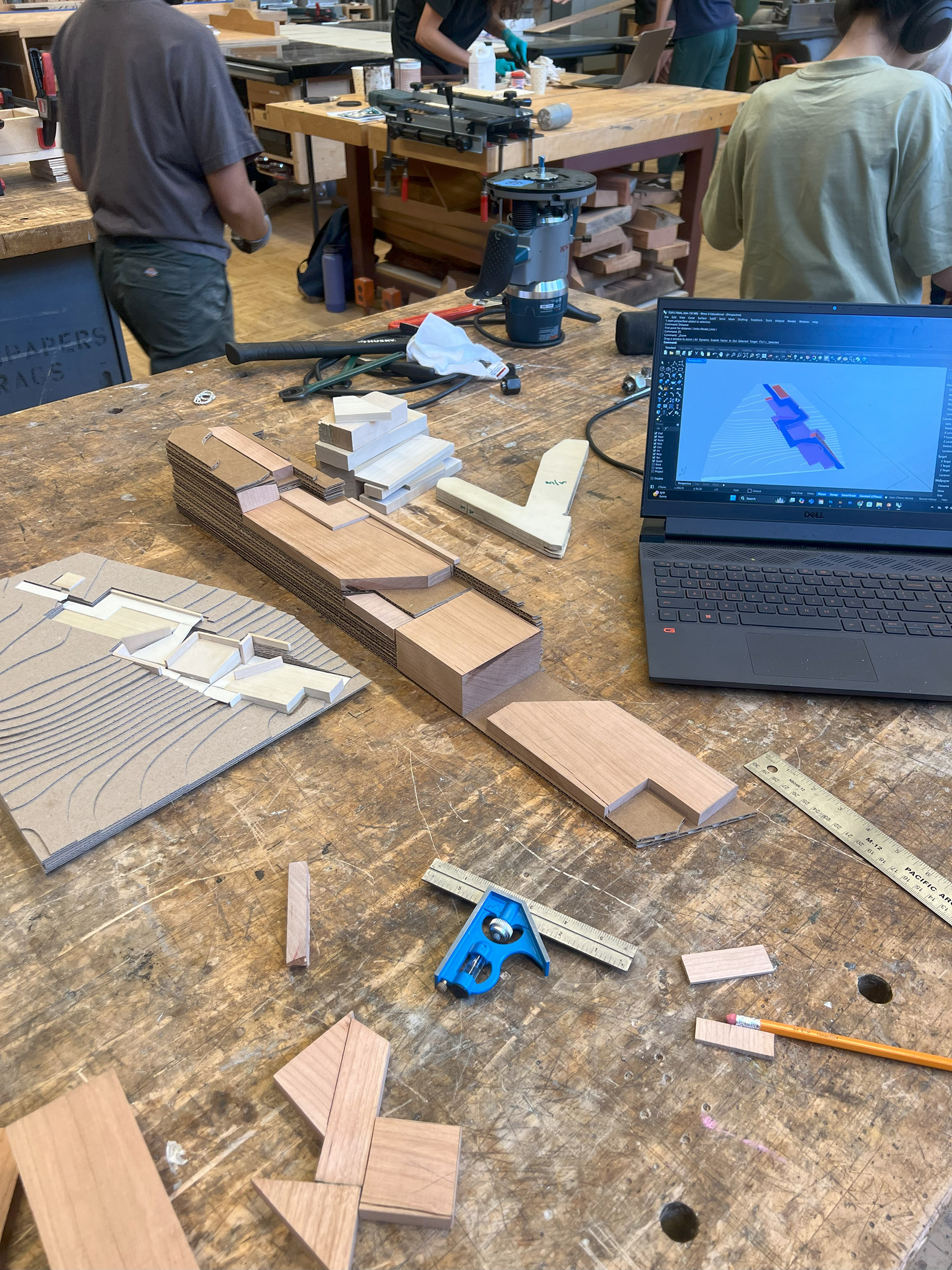

model building process photos
