LOGGIA HOUSE

ARCH 125A

revit ● lumion

2023

" tasked with creating a building information model using only drawings from the original 'case study house' program (john etenza, 1945-66), I selected case study no. 16, the loggia house by craig ellwood. this project presented the realistic challenge of translating a fully analog design to the modern building science convention of the present day, bim. "

renders (lumion)

original plan and perspective hand drawings

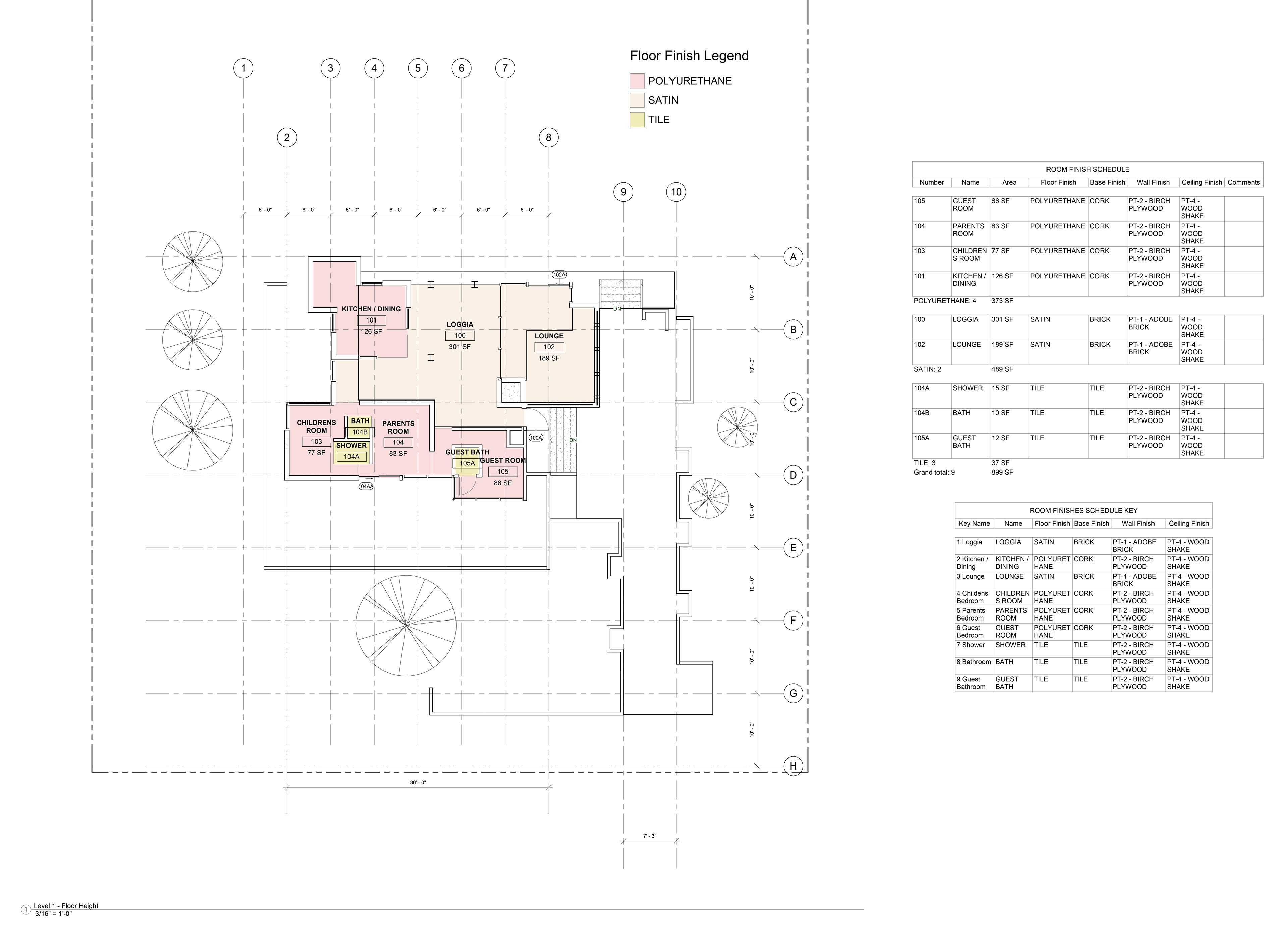

plan + floor and room finish legend

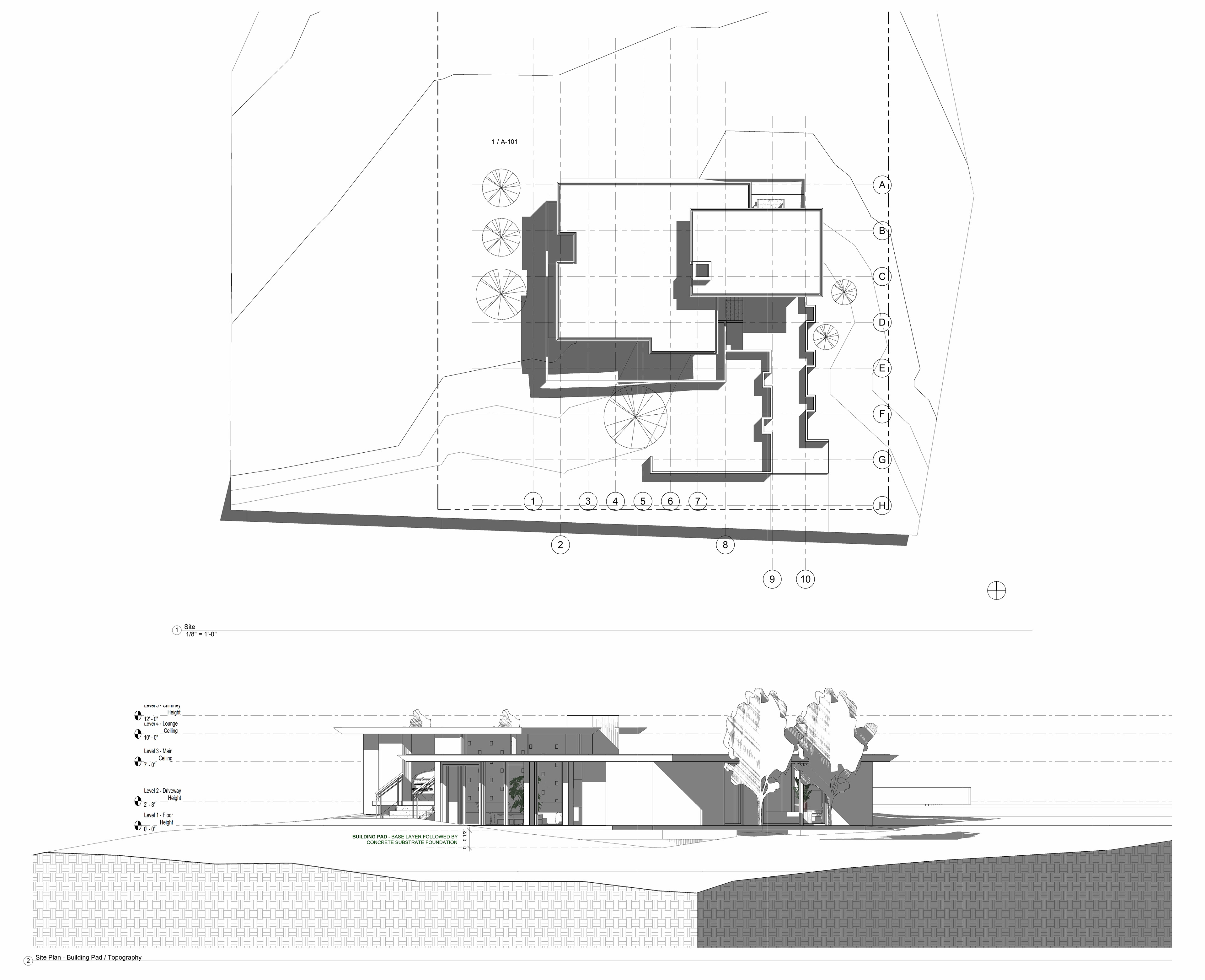

site plan + building pad

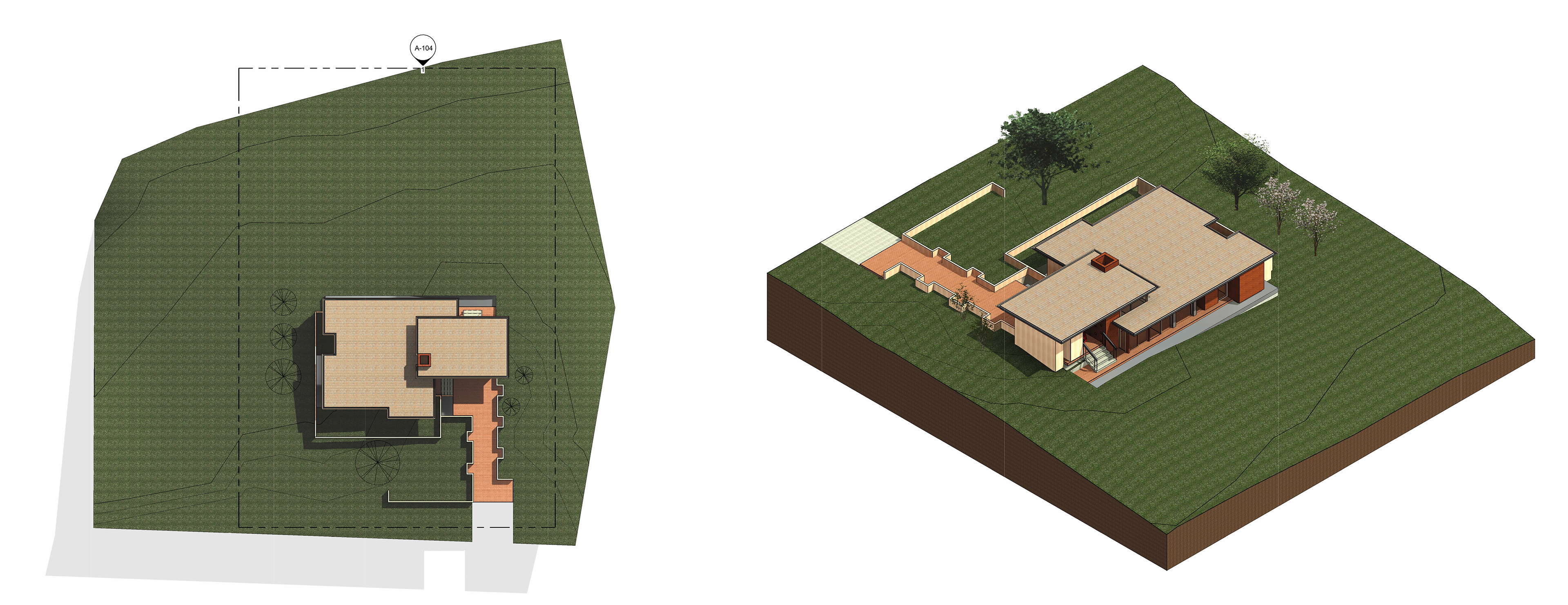

isometric
